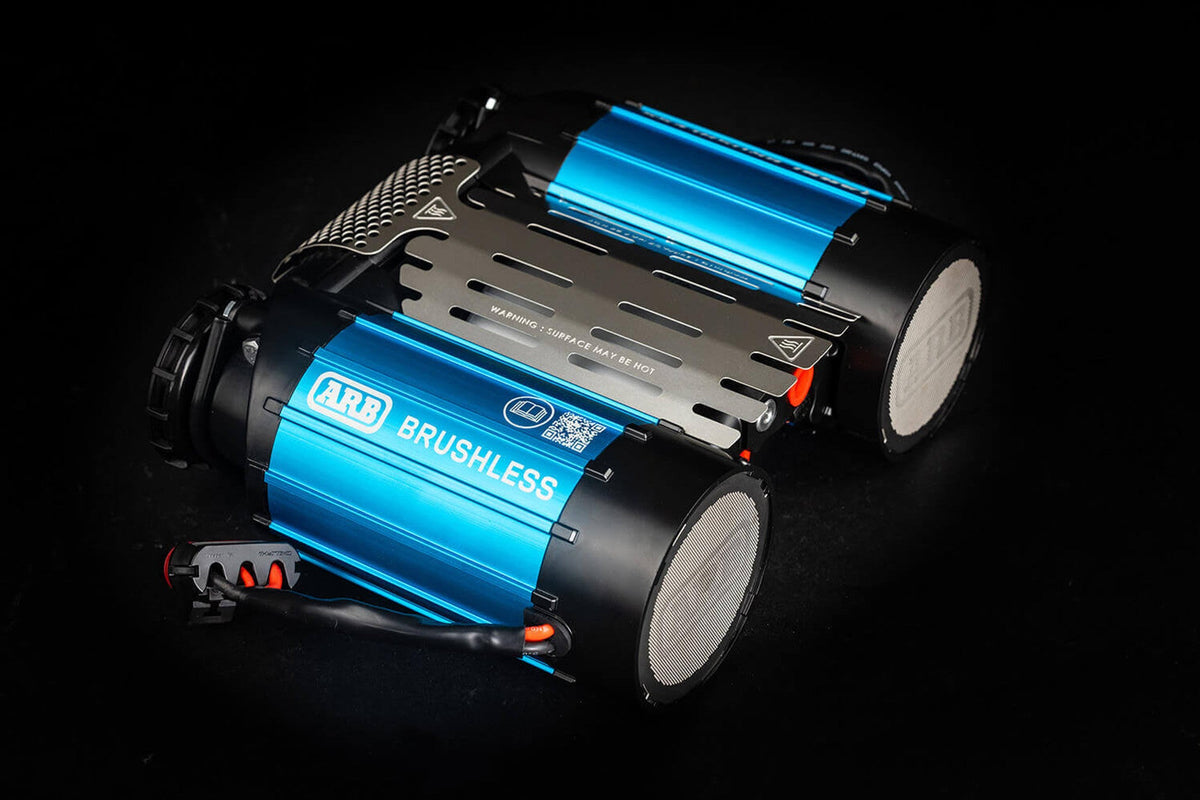

  • The brushless twin on black, blue anodized motor housings either side of the guard

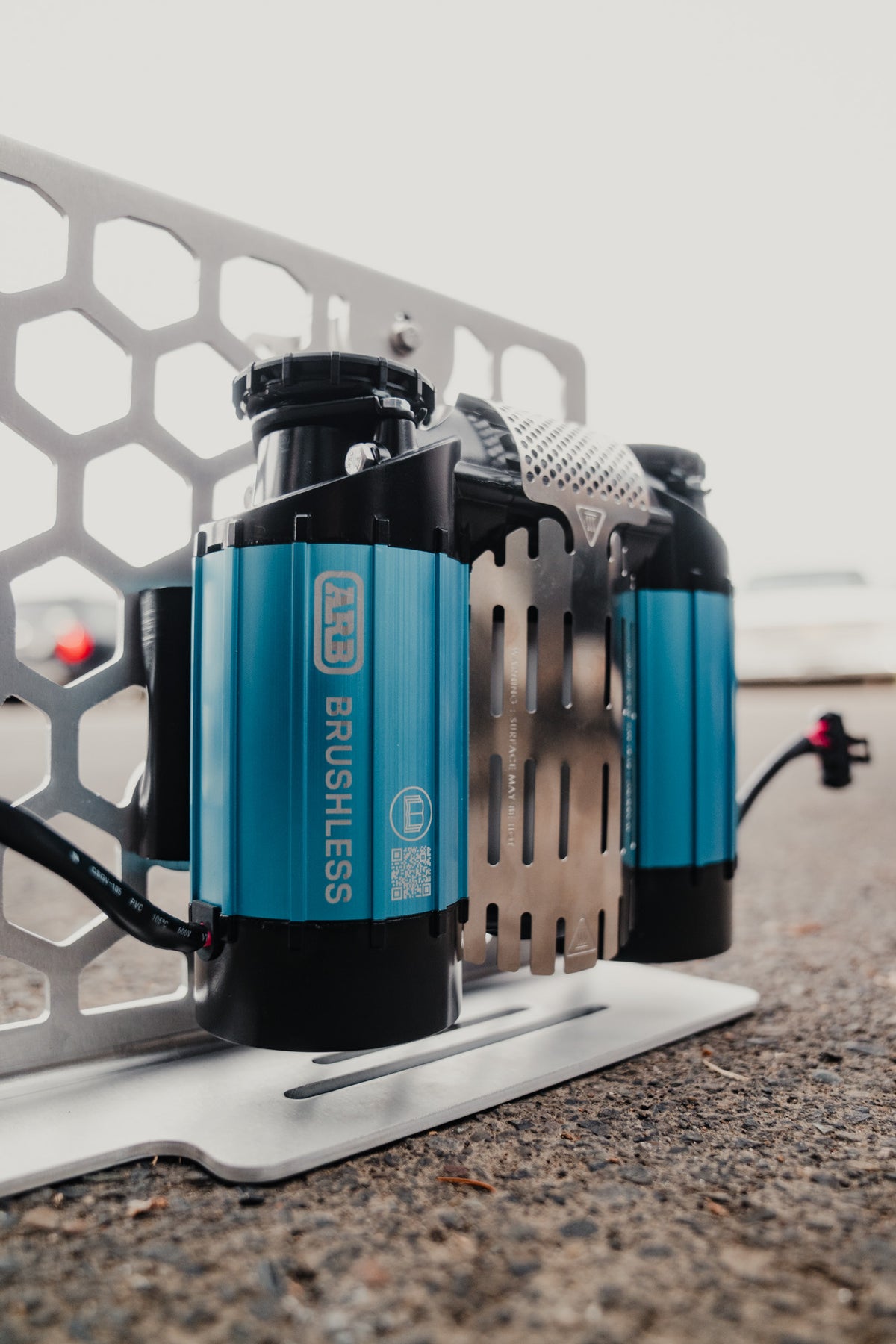

  • ARB Brushless twin compressor on a honeycomb mounting plate outside, blue motor housings and the ARB logo up close (plate not included)

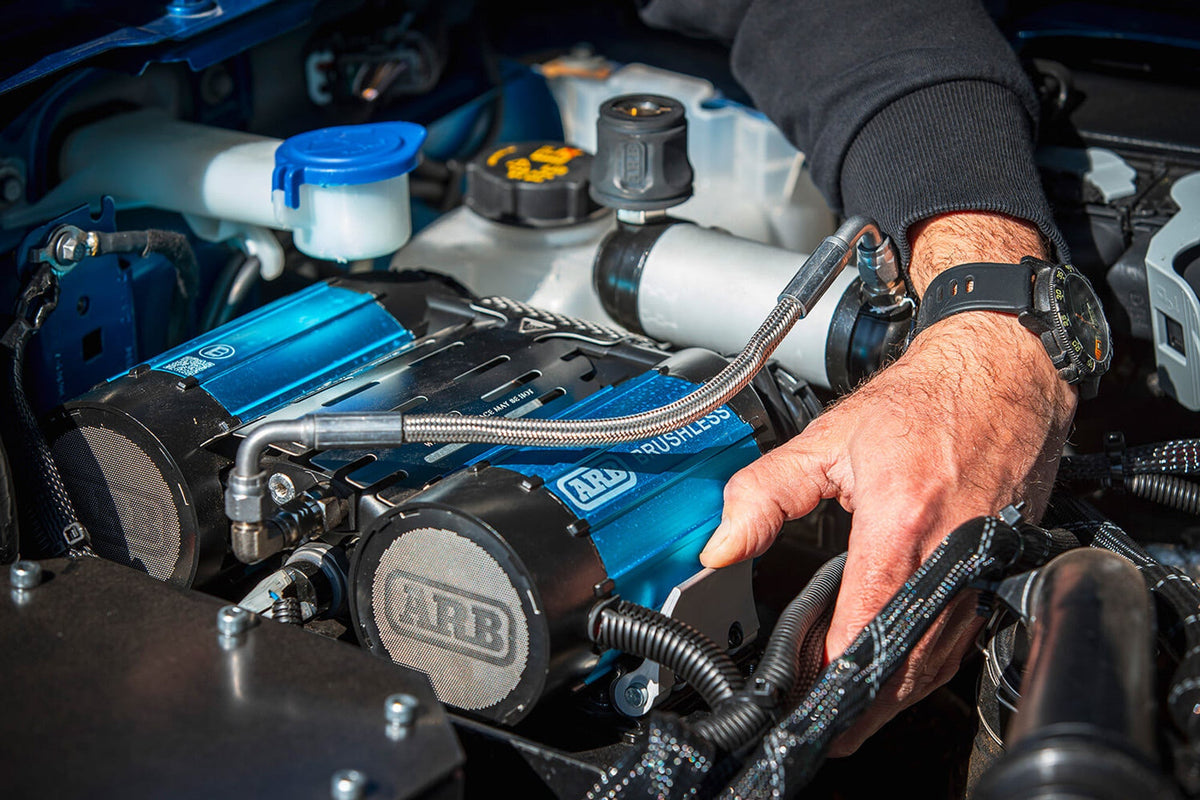

  • The compressor mounted in an engine bay, a hand running the braided air line onto it

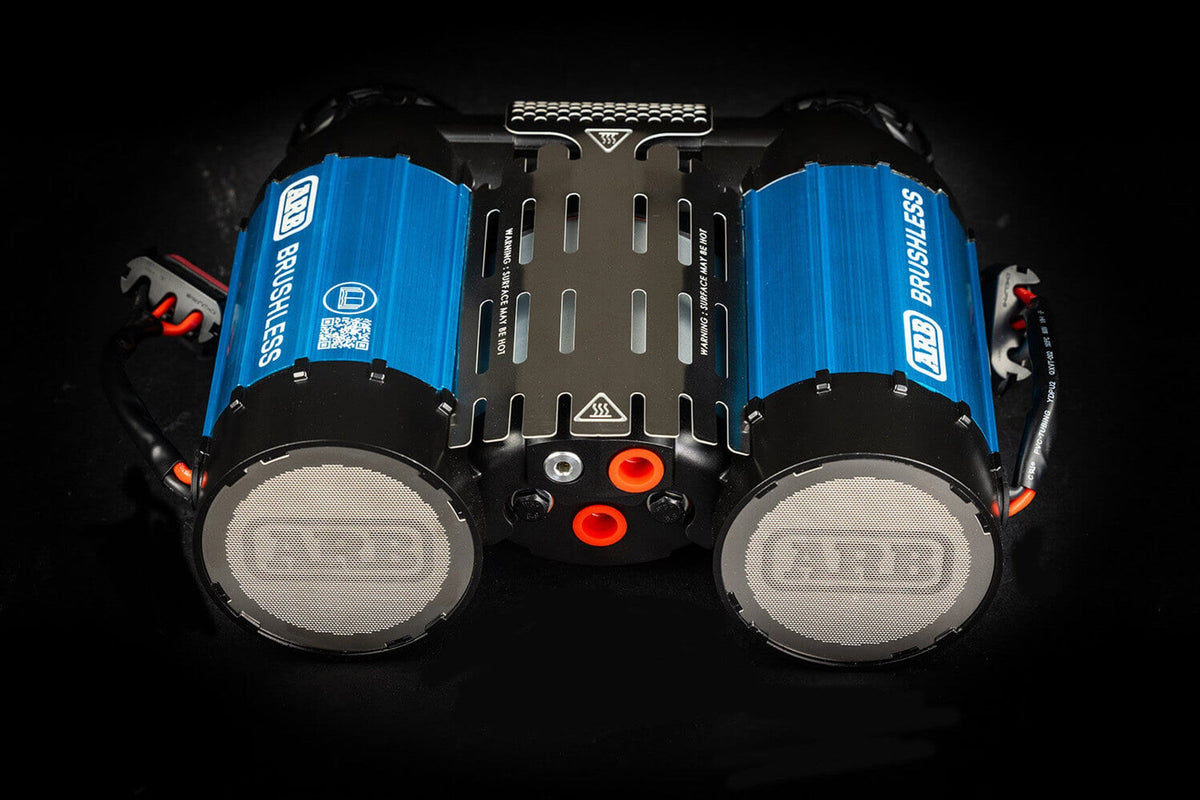

  • Looking down on the brushless twin, ARB end caps and the red air outlets

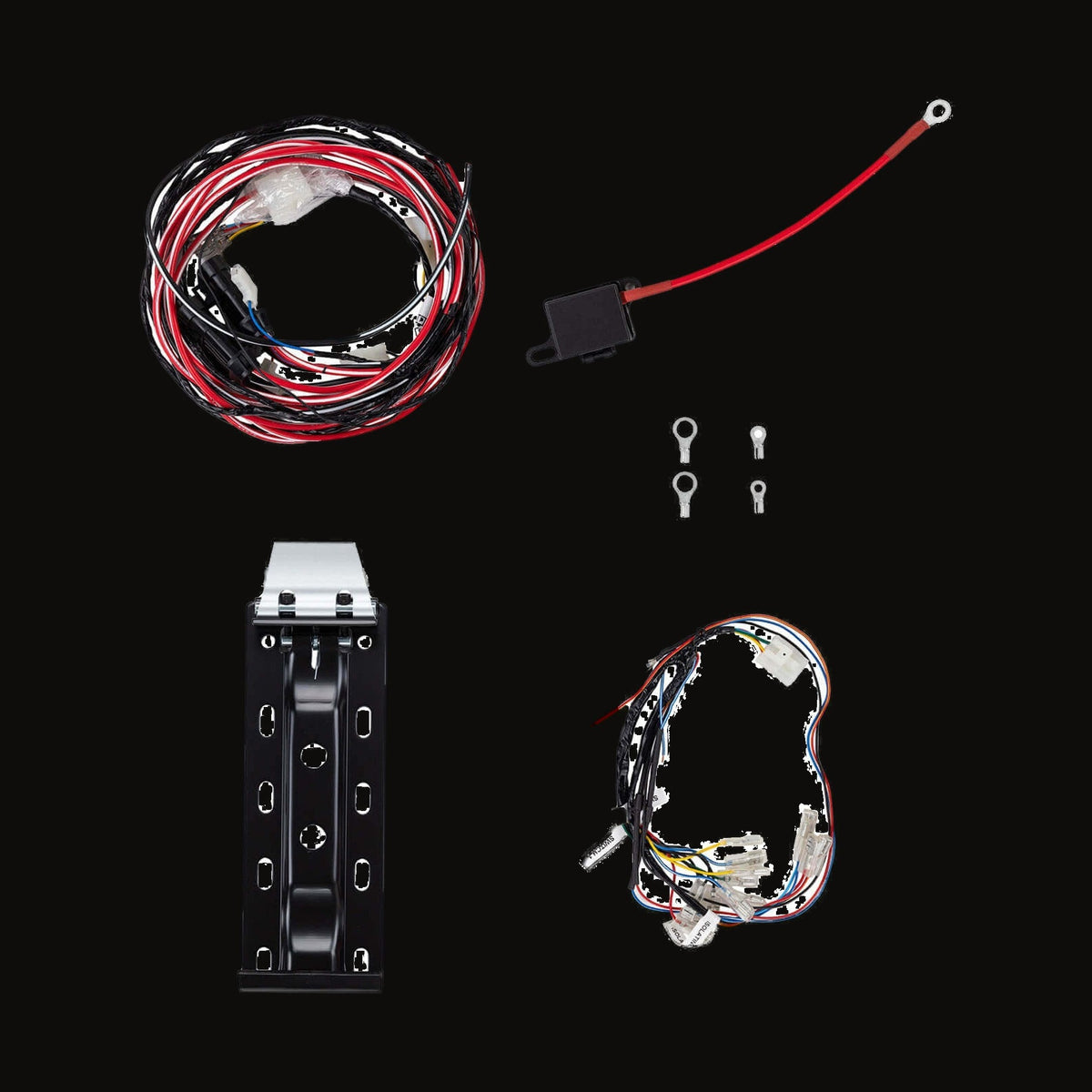

  • The loom, fused lead, mounting bracket, ring terminals and connectors that come with it
ARB Brushless Twin Air Compressor, On-Board 12V

ARB Brushless Twin Air Compressor, On-Board 12V

$949.95
Add ARB Manifold Kit 171503

ARB's brushless twin, with 50 percent more output than the brushed compressor it sits above. Active cooling in each motor, electronic speed control, and no relays to mount because the brushless motors do not need them.

/WHY IT IS HERE

The gain is time. Fifty percent more air is fifteen minutes back at the end of a day, every day, and it compounds on a trip rather than on a single fill.

The install is also simpler than the compressor below it. Quick-release cam-lock mounts mean the unit comes off without tools, and losing the relays removes a mounting problem rather than adding a feature.

/KNOW BEFORE YOU BUY
  • The manifold kit is a separate choice at checkout and adds $99.95. Decide before you order. The photographs on this page show the unit with the manifold fitted.
  • This is an install. Permanent mount, wired into the vehicle, and at 13.2 lb it wants a solid mounting point.
  • Smart Start staggers the two motors so the startup spike stays within a smaller charging system. Worth knowing if your alternator is stock.
  • It is compatible with ARB's existing air accessories, hose kits and Air Lockers, so an upgrade keeps the plumbing.
  • ARB publish no flow rate here either. The 50 percent is relative to their own brushed twin, not an absolute figure.
/WHICH ONE

The faster of two. The standard Twin costs less and carries a stated 100 percent duty cycle. Take the brushless if filling speed is the point or you are running tools. Take the standard twin if the job is tires and lockers and the money is better spent elsewhere.

/SPECS
  • Model: CKBLTA12, 12 V
  • Output: 50 percent above ARB's brushed twin
  • Dimensions: 3.9 in x 8.3 in x 11.0 in
  • Weight: 13.2 lb
  • Motors: brushless, with a cooling fan in each motor assembly
  • Control: electronic speed control across pressure and ambient temperature
  • Diagnostics: live status reporting by audio and visual alert
  • Protection: voltage spike, drop, overcurrent and motor stall
  • Mounting: cam-lock quick release
  • Relays: none required
  • Smart Start: staggered power-on across the twin
  • Compatible with ARB air accessories, hose kits and Air Lockers
